ANRITSU SSV Series Checkweigher with Metal Detector
Compact and Reliable Inspection
- Minimum system length: 775 mm
Example model : KWS5412BF3D

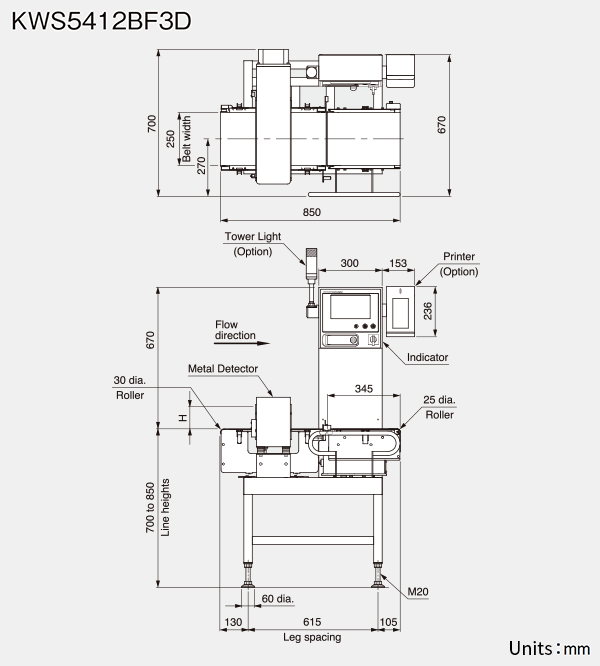

■External dimensions
■Specifications
1: The speed and accuracy vary according to the products to be weighed and the rejector.
2: The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products.
|
Model
|
KWS5412BF3D
|
|
|
Weighing range
|
12 to 3000 g
|
|
|
Scale interval
|
0.1 g
|
|
|
Maximum speed1
|
320 products/min
|
|
|
Maximum accuracy (3σ) 1
|
+/- 0.2 g
|
|
|
Display
|
8.5-inch color TFT LCD
|
|
|
Operation method
|
Touch panel (Start, Stop, and Home are direct push buttons)
|
|
|
Indication range
|
3009 g
|
|
|
Preset memory
|
Maximum 200
|
|
|
Classification
|
2 or 3
|
|
|
Product size 2
|
Width W
|
20 to 250 mm
|
|
Length L
|
60 to 320 mm
|
|
|
Height H
|
5 to 80 mm
|
|
|
Belt speed
|
15 to 120 m/min
|
|
|
Power requirements
|
100 to 120 Vac +10% –15% or 200 to 240 Vac +10% –15%, single phase, 50/60 Hz, 300 VA, rush current 30 A (typ.) (20 ms or less)
|
|
|
Mass
|
101 kg
|
|
|
Environmental conditions
|
0° to 40°C (variation not to exceed 5°C/h to maintain accuracy), relative humidity 30% to 85%, non-condensing
|
|
|
Protection class
|
IP30 compliance
|
|
|
Exterior
|
F type: painted
|
|
|
Data output
|
USB port (USB2.0), Ethernet interface (10BASE-T, 100BASE-TX)
|
|
2: The size of products to be weighed depends on the rejector; select a checkweigher together with a rejector. Consult us about semi-transparent and transparent products.
Note: The noise level of the checkweighers does not exceed 70 dB (A).
Detection areas
The SSV series is available in a variety of models to suit a wide range of products. For details of detection areas, please submit an online inquiry form.
〈Versatile model〉SSV-h series
| Model | Weighing range （g） |
Maximum accuracy （g） |
Maximum speed （products /min） |
Belt speed （m/min） |
Product size | Metal detection unit | ||||||||
| duw | duw-h | |||||||||||||
| Width （mm） |
Length （mm） |
3D | 4D | 5D | 6D | 2E | 3E | 4E | 5E | |||||
| KWS6003B△□□ | 0.4 to 100 | +/- 0.01 | 310 | 15 to 92 | 20 to 100 | 58 to 230 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6005B△□□ | 0.4 to 100 | +/- 0.01 | 310 | 15 to 92 | 20 to 160 | 58 to 230 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6006B△□□ | 0.4 to 100 | +/- 0.01 | 320 | 15 to 120 | 20 to 160 | 58 to 320 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6203B△□□ | 1.2 to 600 | +/- 0.015 | 400 | 15 to 120 | 20 to 100 | 58 to 230 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6205B△□□ | 1.2 to 600 | +/- 0.015 | 400 | 15 to 120 | 20 to 160 | 58 to 230 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6206B△□□ | 1.2 to 600 | +/- 0.015 | 320 | 15 to 120 | 20 to 160 | 58 to 320 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6411B△□□ | 6 to 3000 | +/- 0.1 | 400 | 15 to 120 | 20 to 250 | 65 to 230 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6412B△□□ | 6 to 3000 | +/- 0.1 | 320 | 15 to 120 | 20 to 250 | 65 to 320 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6414B△□□ | 6 to 3000 | +/- 0.1 | 220 | 15 to 120 | 20 to 250 | 65 to 450 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6416B△□□ | 6 to 3000 | +/- 0.1 | 210 | 15 to 91 | 20 to 350 | 65 to 350 | ○ | ○ | ○ | ○ | ○ | ○ | ||
| KWS6417B△□□ | 6 to 3000 | +/- 0.1 | 170 | 15 to 91 | 20 to 350 | 65 to 450 | ○ | ○ | ○ | ○ | ○ | ○ | ||
The speed and accuracy vary according to the products to be weighed and the rejector.
△: The alphabet letter indicating the exterior type.
□: The numerical character and the alphabet letter indicating the metal detection unit type.
△: The alphabet letter indicating the exterior type.
□: The numerical character and the alphabet letter indicating the metal detection unit type.
