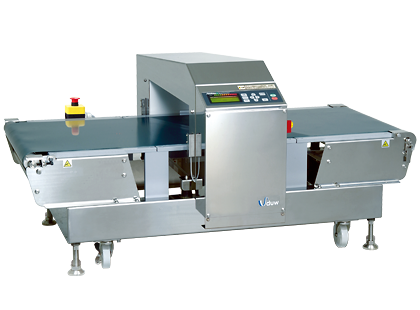

Metal Detector
Large model
Large model
duw series
The large aperture infeed is suitable for products in bulk flow or large bags and cartons.
The large aperture infeed is suitable for products in bulk flow or large bags and cartons.
 |
Auto-setting of a heavy product is performed by running conveyors back and forth automatically.
|
 |
Auto-setting with reverse run sorts OK products and NG products. This setting can be used when rejector is not used.
|
[Example model] Pass width: 650 mm, Pass height: 250 mm (KD8135AW)

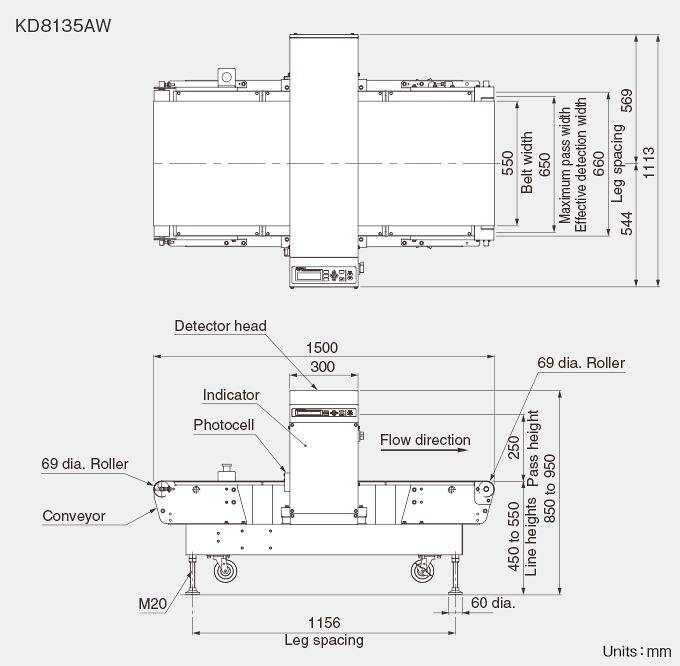

■External Dimensions
■Specifications
1: Detection sensitivity for actual use may vary depending the type of contaminants, the physical property of product (temperature of goods, content, and shape).
2: Sum total of product weight on the conveyor.
|
Model
|
KD8135AW
|
|
|
Pass height
|
250 mm
|
|
|
Maximum pass width
|
650 mm
|
|
|
Detection sensitivity 1
|
Fe sphere
|
0.7 mm dia
|
|
SUS304 sphere
|
1.4 mm dia
|
|
|
Belt width
|
550 mm
|
|
|
Display
|
STN LCD
|
|
|
Operation method
|
Flat panel key
|
|
|
Preset memory
|
Maximum 100
|
|
|
Belt speed
|
27 m/min (50 Hz), 33 m/min (60 Hz)
|
|
|
Maximum product weight 2
|
50 kg
|
|
|
Power requirements
|
100 Vac ±10%, single phase, 50/60Hz; 110 to 120 Vac ±10%, single phase, 60Hz; or 200 to 230 Vac ±10%, single phase, 50/60Hz
|
|
|
Mass
|
190 kg
|
|
|
Environmental conditions
|
0° to 40°C, relative humidity 30% to 85%, non-condensing
|
|
|
Protection class
|
IP66 compliance
|
|
|
Exterior
|
stainless steel (SUS304)
|
|
1: Detection sensitivity for actual use may vary depending the type of contaminants, the physical property of product (temperature of goods, content, and shape).
2: Sum total of product weight on the conveyor.
Detection areas
Each series features a variety of detection areas to suit a wide range of products.
For details of specifications, please submit an online inquiry form.
For details of specifications, please submit an online inquiry form.
|
Pass height (mm)
|
||||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | ||
| Pass width (mm) | 650 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
